| Quantity: | |
|---|---|
0423
Libin
UHMWPE
blue , green , yellow , red , black ,etc
Common is 30mm, 40mm, 50mm, etc. Range 10- 300mm can be customized.
| Item | Test method | Unit | UHMWPE １０００－Ｖ | UHMWPE １０００－DS |
| Density | ISO 1183-1 | g/cm3 | ０.９３－０.９５ | ０.９５－０.９６ |
| Yield Strength | ASTM D-638 | N/mm2 | １５－２２ | １５－２２ |
| Breaking Elongation | ISO 527 | ％ | ＞２００％ | ＞１００％ |
| Impact strength | ISO 179 | Kj/m2 | １３０－１７０ | ９０－１３０ |
| Abrasion | ISO 15527 | Steel＝100 | ８０－１１０ | １１０－１３０ |
| Shore Hardness | ISO 868 | Shore D | ６３－７０ | ６３－７５ |
| Friction Coeffiicient | ASTM D-1894 | Unitless | ＜０.２ | ＜０.２ |
| Operating Temperature | - | ℃ | －８０ｔｏ＋８０ | －８０ｔｏ＋８０ |

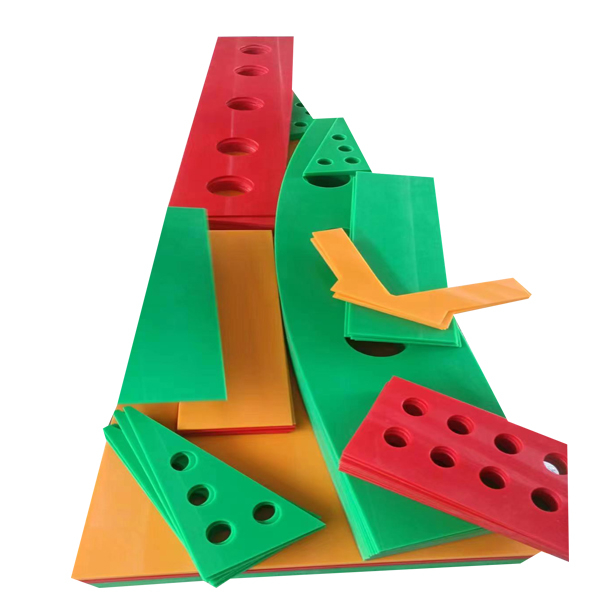

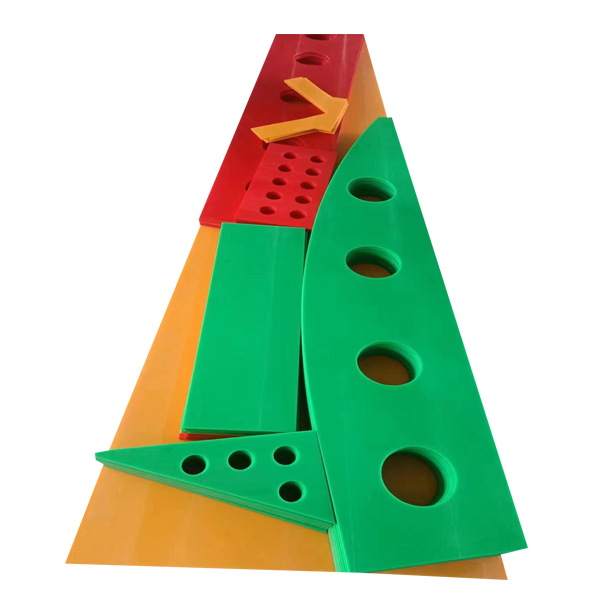

UHMWPE1000 ultra high molecular weight polyethylene (UHMW.PE) is the first choice material for facing steel fender panels and other heavy duty applications. It combines very low friction with excellent impact strength and a wear resistance much better than steel. Most popular is UHWMPE 1000-DS which is 'double-sintered and work-hardened for extra durability. The standard colour is black, but if other colours are needed then UHMWPE 1000-V 'virgin' grade also comes in yellow, white, grey, blue, green and red. UHMW-PE 1000 materials are compounded to resist ozone and UV radiation. They do not degrade or rot and are easily recycled at the end of their service life.

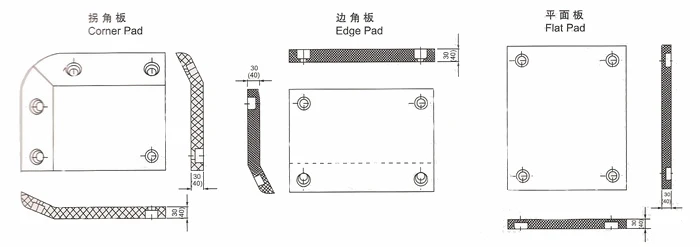

For special drawing and properties of UHMW-PE Fender facings /UHMW-PE Fender pad, please contact us
